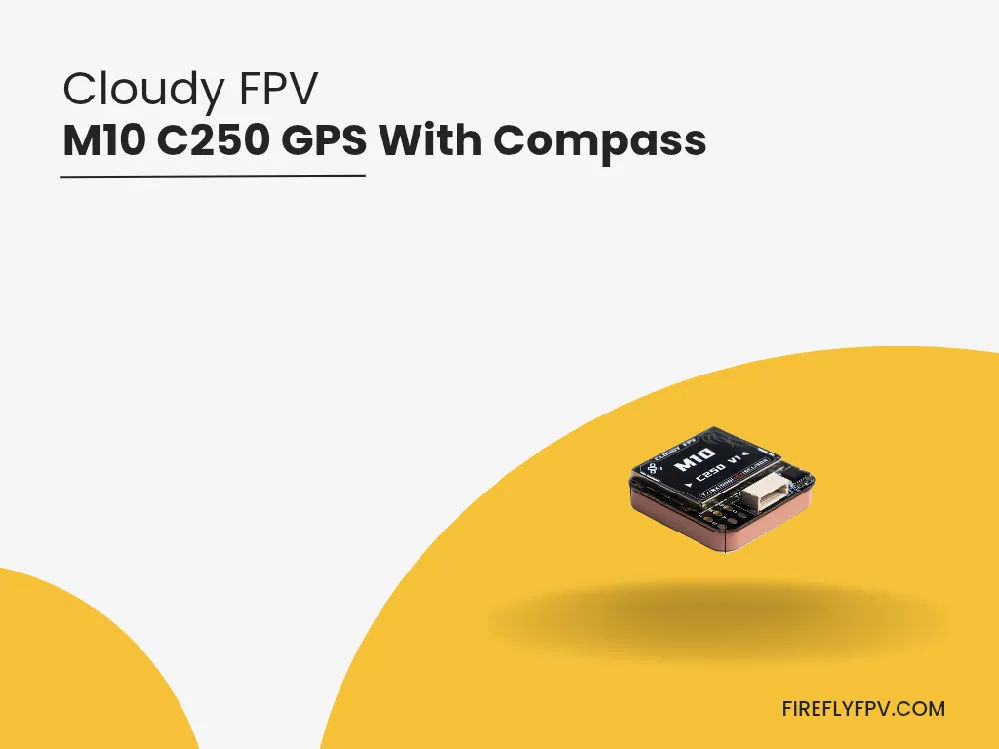

CloudyFPV M10 C250 GPS With Compass

Product Description

Using the new 10th-generation UBLOX chip design, the Cloudy FPV C250 positioning is fast and accurate. The small 25x25mm size can be loaded on 5-7 inch drones. The ceramic antenna and externally expanded PCB design allow GPS to receive satellite signals effectively. At the same time, it supports receiving GPS, Galileo, and BDS three satellite signals, allowing you to locate in any area quickly. For the convenience of everyone, we have designed onboard LED indicators, including power indicators and positioning PPS indicators, so that you can know the working status of GPS well.

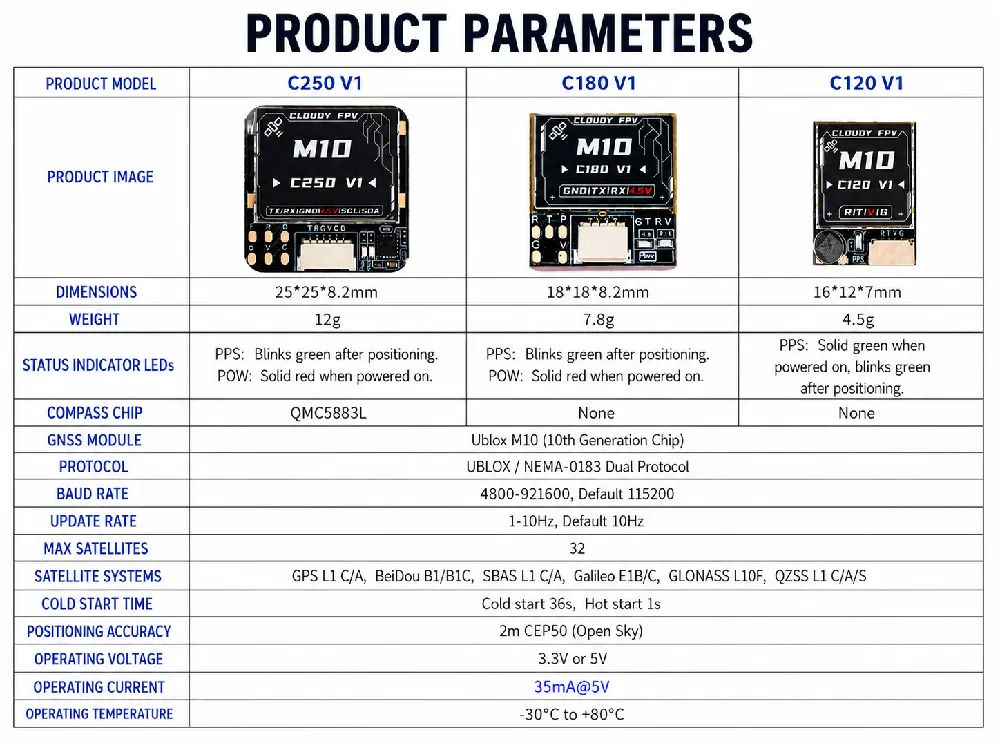

Specifications

Chip: M10(10th Generation Chip)

Antenna: Ceramic Antenna

Frequency: GPS L1 C/A, GLONASS L10F, BDS B1/B1C, GALILEO E1B/C, SBAS L1 C/A, OZSS L1 C/A/S

Baud Rate: 115200bps

Output Protocol: UBLOX/NEMA

Output Frequency: 10Hz

Input: 3.3V-5V

Size: 25x25x8.2mm

Weight: 12g

Speed Accuracy: 0.05m/s

Horizontal positioning accuracy: 2D ACC2.0m(Outdoor)

Receiver Sensitivity: Trace -166dBm

Capture -160dBm

Characteristics: High:50000m

Speed: 500m/s

acceleration 4G

Operating temperature: -30°C - +80°C

Storage temperature: -40°C - +105°C
