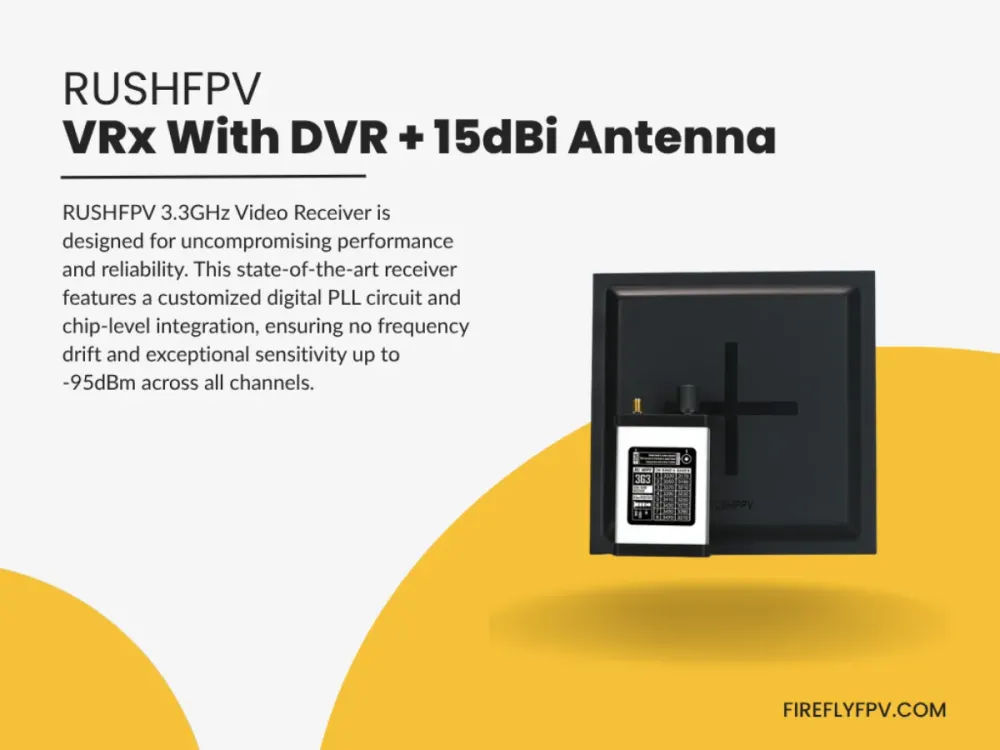

RUSHFPV 3.3GHz VRx With DVR And Directional Antenna
₹16,499.00₹17,999.00
8% off
You save ₹1,500.00
Price exclusive of all taxes
1
Product Description
The RUSHFPV 3.3GHz Video Receiver is designed for uncompromising performance and reliability. This state-of-the-art receiver features a customized digital PLL circuit and chip-level integration, ensuring no frequency drift and exceptional sensitivity up to -95dBm across all channels.
Key Features:
- Customized Digital PLL Circuit: Achieve stable, drift-free performance with our high-integration chip design.
- Optional Built-in DVR Module: Record your flights effortlessly with the optional CVBS 30fps DVR.
- Rugged Aluminum Alloy Housing: Durable construction with digital display and easy-to-use knob.
- High-Gain Directional Antenna: The multi-unit antenna provides a narrow beam angle and an impressive 15.8 dBi gain.
- Complete Quality Control: Thorough QC for all vRX and antenna production ensures top-notch reliability.
Specifications (VRX Module):
- Video Output: CVBS NTSC/PAL
- Frequency: BAND-A 3330-3470MHz (8 channels), BAND-B 3170-3310MHz (8 channels)
- Sensitivity: <-95dBm
- DVR: CVBS 30fps (Optional)
- DC Input: 7-30V
- Connector: SMA
- Dimensions: 58x27x101mm
- Weight: 103g
Specifications (Directional Antenna):
- Polarization: LHCP/RHCP
- Bandwidth: 3150-3500 MHz
- Beamwidth: 29 degrees @3dB H+V
- Gain: 15.8 dBi
- V.S.W.R: <1.3
- Cable: RG178 (Adapter Cable)
- Connector: SMA
- Dimensions: 174x174x16mm
- Weight: 196g
