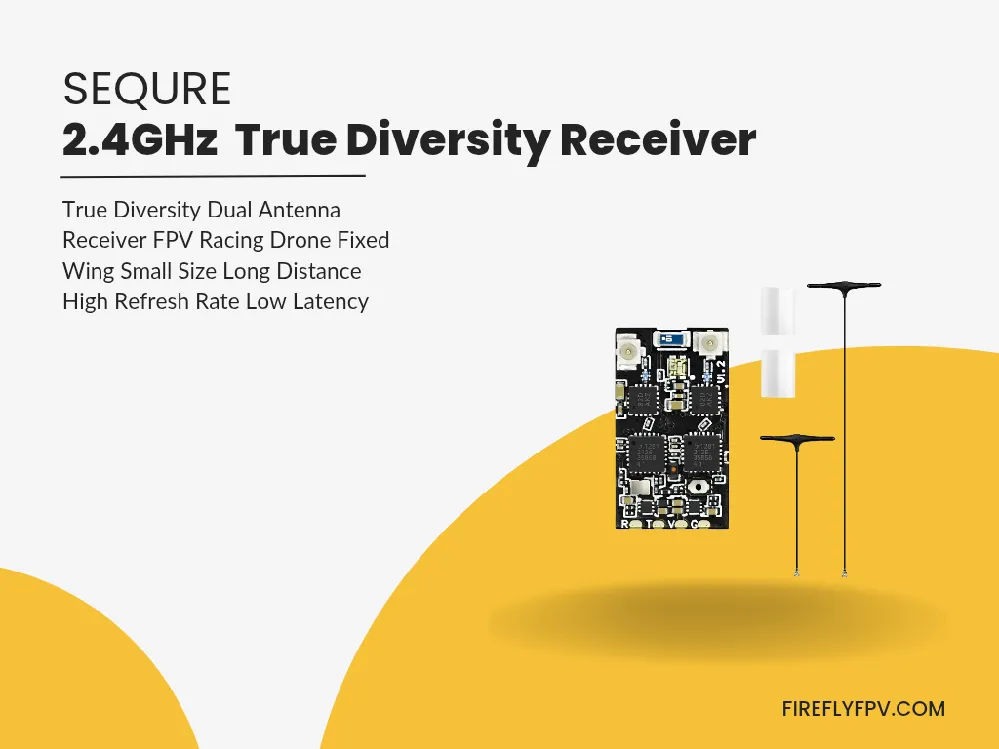

SEQURE 2.4GHz True Diversity Dual Antenna ELRS Receiver

₹2,499.00₹2,999.00

17% off

You save ₹500.00

Price exclusive of all taxes

1

Product Description

Experience fast, reliable RC performance with this high-performance 2.4GHz true diversity receiver, powered by the ESP32-PICO-D4 and dual SX1281 RF chips. Designed for low-latency flying, it supports up to 1000Hz refresh rates for precise control, while the integrated TCXO ensures stable performance across changing temperatures. Dual PA+LNA amplifiers with 100mW ×2 telemetry provide excellent signal reliability, and versatile SH1.0-4P and solder pad connections make installation easy for a wide range of FPV builds.



Features

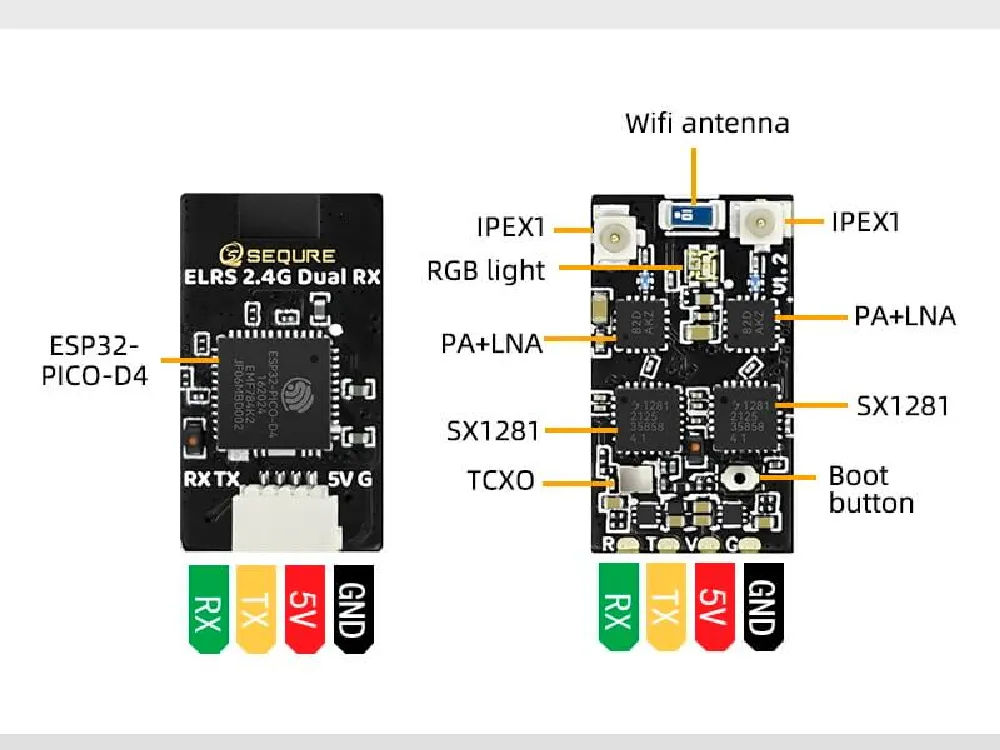

  • High-performance ESP32-PICO-D4 master control, dual-frequency SX1281 chip, true diversity dual antenna receiver.
  • High-frequency anti-interference, 2.4GHz frequency, strong signal penetration.
  • High-speed data transmission, support F1000Hz and F500Hz ultra-high refresh rates, meet the low latency requirements of racing players.
  • Onboard temperature-compensated crystal oscillator (TCXO), refuses ambient temperature to affect flight, maintains stable operation in high or cold environments, making flight safer.
  • Integrated with dual-channel high-power PA+LNA low-noise amplifier and 100mW (20dBm)*2 telemetry return, the return of flight data is more stable.

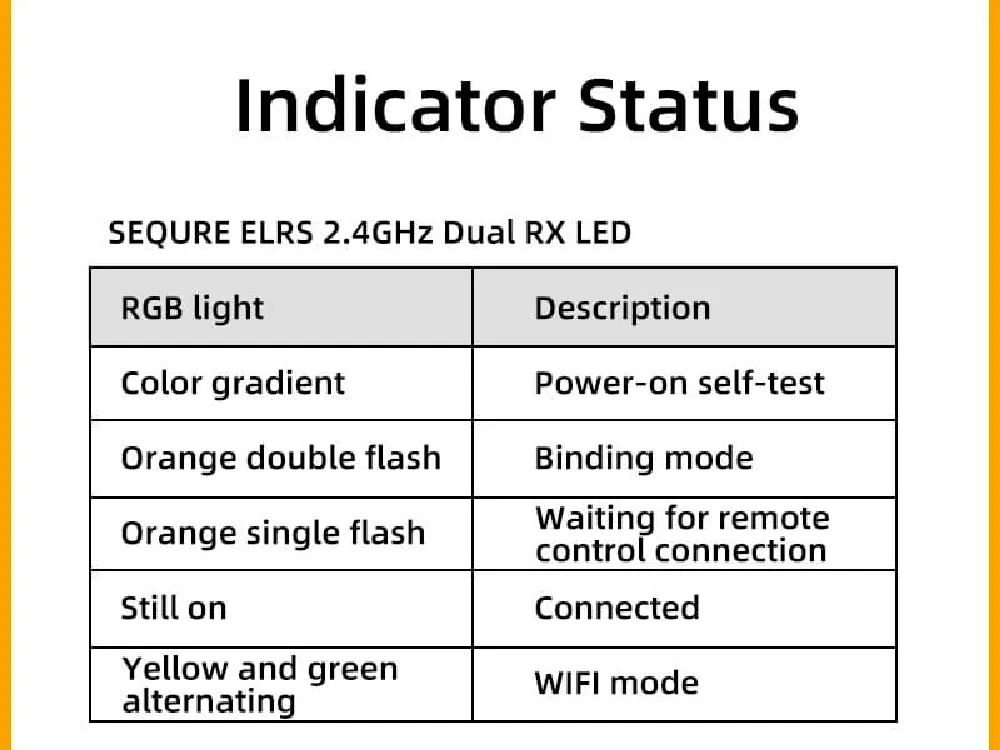

  • Onboard RGB color indicator, quickly identify different working status.
  • Support SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.


Specification
  • Model: SEQURE ELRS 2.4GHz Dual RX
  • Firmware: SEQURE 2.4GHz Dual RX_3.4.0
  • MCU: ESP32-PICO-D4
  • RF Chip: SX1281
  • Crystal Oscillator Type: Temperature Compensated Crystal Oscillator（TCXO）
  • PA Power (Telemetry Power): 100mW（20dBm）* 2
  • LNA: YES
  • Indicator Light: Colorful RGB Light
  • Frequency Band: 2.4GHz ISM
  • Protocol: CRSF
  • RF Mode: Dual /True Diversity/True diversity dual antenna
  • Antenna Interface: Ipex1
  • Receiver Interface: SH1.0-4P connector, 2.54-4P pad
  • Working voltage: 5V
  • Weight: 1.5g
  • Size: 23*12.8*5mm

Package Includes
  • SEQURE ELRS 2.4GHz Dual RX×1
  • 2.4G antenna (80mm and 120mm)
  • 30AWG 100mm single-end SH1.0-4P cable×1
  • 12*30mm heat shrink tube×2
