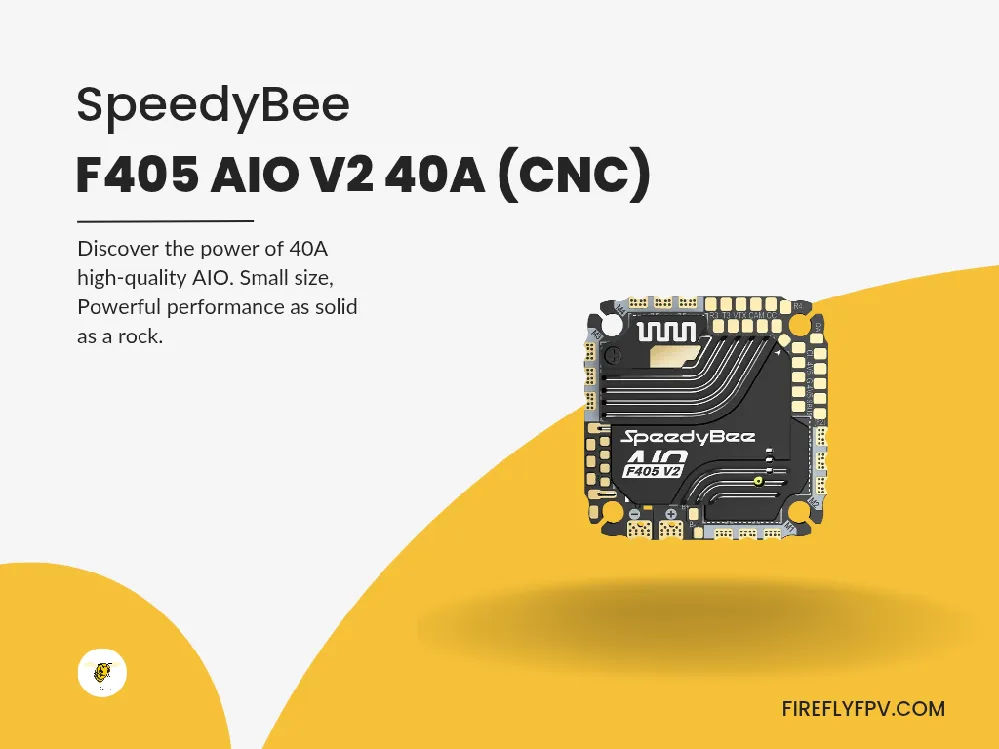

SpeedyBee F405 AIO V2 40A Bluejay (CNC)

Product Description

The F405 AIO V2 all functional solder pads are concentrated on the same side,the solder pad area has increased by 30% compared to F745 A1O, making soldering easier andthe operation more convenient,has launched a CNC free version to further optimize its volume and weight, meeting more requirements for small rack adaptation.

Features:

• Integrated Flight Control and Electronic Speed Controller for Model Aircraft
• Onboard ICM-42688 gyroscope, no CNC version reduced to 8.9g,Small sized racks can also be easily assembled
• 4 sets of UART serial ports+SBUS+12C+TYPE-C expansion+buzzer+BOOT, GPS,magnetometer, LED can all be easily connected
• No need to connect to a computer or data cable, supports one click wireless same device upgrade, the system automatically enters DFU mode without manual operation
• Multiple optimized designs, O4 image transmission can be directly installed
• Dual BEC Design: optimized pad layout,Both 9V BEC and 5V BEC exhibit excellent performance
• Built-in physical buttons and virtual DFU buttons, and firmware upgrades do not require disassembly, APP One click access to DFU, firmware upgrade more portable
• Only supports DSHOT600/300, other protocols may cause serious errors
• Support meteor light strip function,Easily create cool lighting effects, personalize your flying experience(it can also automatically enter DFU when the flight control firmware is abnormal)
• Support remote control mapping for power control,Can be freely enable /close, effectively avoid damage to image transmission due to overheating during no-load operation

F405 AIO V2 Specifications:

• Product Name: SpeedyBee F405 A1O V2
• Main control chip: STM32F405
• Gyroscope: ICM-42688P
• USB interface type: Type-C
• Barometer: SPA06-003
• OSD: Support
• Bluetooth BLE: Supports
• Wireless Flight Control Firmware Update: Supports
• DJI Air Unit connection methods: 6PIN socket direct insertion and soldering
• Black box storage: 8MB
• Betaflight CC solder pads: support
• Input voltage: 3S-6S lipo battery
• 4V5 output: 1A
• 5V BEC output: 1.5A
• 9V BEC output: 1.5A
• MOTOR: M1-M4
• UART serial port: Four sets of fully functional serial ports (UART3, UART4, UART5, UART6+SBUS [R2])
• Electric tuning test input: none
• I2C: Support
• LED pads: support
• Beehive pad: Support
• BOOT key: Support
• RSSI pad: None
• SmartPort: not supported
• Supported flight control firmware types: betaflgiht
• Firmware Target Name: SPEEDYBEEF405AIOV2
• Installation hole position: 25.5mm x 25.5mm, 2mm aperture
• Size: Standard version: 33x33x7mm; CNC version: 33x33x8mm
• Weight: Standard version: 8.99; CNC version: 12.8g

ESC Specifications:

• Product Name: SpeedyBee F405 AIO V2
• Input voltage: 3-6S
• Nominal current: Standard version: 35A single channel, 140A four channel; CNC version: 40A single channel, 160A four channel
• Peak current: Standard version: 40A V, 160A quad; CNC version: 45A single channel, 180A four channel
• ESC protocol: only supports DSHOT600/300, other protocols may cause serious errors.
• Output voltage: VBAT battery voltage (used to power the flight control)
• Ammeter: Supports (Scale=88, Offset=0)
• ESC firmware: Factory firmware Bluejay JH-40 48Khz

Package contents:

• 1 * F405 AIO V2
• 1 * Welding practice board
• 4 * M2 7.7mm shock-absorbing silicone sleeve
• 4 * M2 8.4mm shock-absorbing silicone sleeve
• 1 80mm]
• 1* BEC
• 1 * Type-C extension module

61* Type-C extension module 4-pin * 80mm ribbon cable

• 1 * User Guide
• 2 * Transparent heat shrink tubing
• 1 * Meteor light strip BEC connection cable view 80MM
• 1 * Power Expansion Board
• 4 20mm

64 12 mm

1 * 35V 470UF electrolytic capacitor

• 1 * Electric customer heat shrink tubing
